Cablu de instrumente RE-Y(St)Yv-TP

Name: Cablu de instrumente RE-Y(St)Yv-TP
SKU: RE-Y(St)Yv-TP

Categorii

Cabluri instrumente industriale

Descriere

Application
• At instrumentation control and data processes,
analog and digital signal transmission.
• In chemical and petrochemical industry.
• Powerplants.
• Gas stations, water transportation systems.

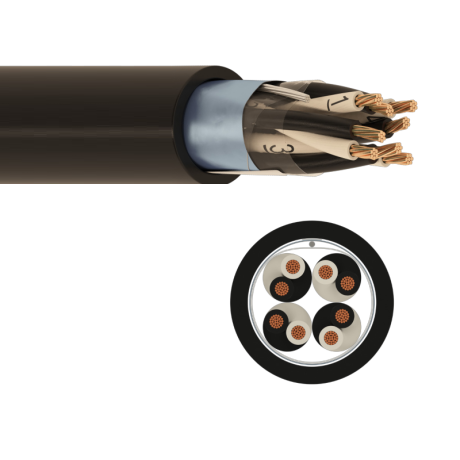

Cable Construction

1 - Conductor : Stranded electrolytic copper conductor (Class 2)
(IEC 60228, EN 60228, DIN VDE 0295)
2 - Insulation : PVC (BS EN 50290-2, VDE 0207 YI1), Black, White;
Number coded (BS 5308-2)
3 - Stranding : Pairs are stranded in layers.
4 - Wrapping : Polyester tape
5 - Screen : Tinned copper earthing wire, Al/PET tape
6 - Outer Jacket: UV resistant PVC outer jacket. RAL 9005 (Black)

Technical Characteristics

CrossSection	Conductor Resistance Ω/km (20 °C)	Insulation Resistance MΩ/km (20 °C)	Mutual Capacitance pF/m	Inductance Resistance Ratio nH/Ω	Current Carrying Capacity A	Operating VoltageV DC	Test Voltage V( DC. 1 minute) Pair - Pair	Test Voltage V (DC. 1 minute) Pair-Screen
0.50 mm²	36	100	160	25	6	300/500	2000	2000
075 mm²	24.5	100	160	25	13	300/500	2000	2000
1.00 mm²	18.1	100	160	25	16	300/500	2000	2000
1.30 mm²	13.9	100	170	40	18	300/500	2000	2000
1.5 mm²	12.1	100	170	40	20	300/500	2000	2000
2.5 mm²	7.41	100	170	60	25	300/500	2000	2000

Mechanical Characteristics

BendingRadius	Temperature Range Operating
7.5xD mm	-30°C~+70°C

RE-Y(St)Yv-TP

PartNumber	Pair Count	ConductorCross-section (mm²)	Approx. CableDiameter (mm)	Copper Weight(kg/km)	Approx. Weight(kg/km)	Packing Lengths(m)
3.566.1.2.2.0050.0.0001	1	0.5	7.2	14	70	100/500/1000
3.566.1.2.2.0050.0.0002	2	0.5	9.2	24	96	100/500/1000
3.566.1.2.2.0050.0.0004	4	0.5	11	43	130	100/500/1000
3.566.1.2.2.0050.0.0008	8	0.5	13.3	81	200	100/500/1000
3.566.1.2.2.0050.0.0010	10	0.5	14.2	100	235	100/500/1000
3.566.1.2.2.0050.0.0012	12	0.5	15.2	118	264	100/500/1000
3.566.1.2.2.0050.0.0016	16	0.5	17.1	156	340	100/500/1000
3.566.1.2.2.0050.0.0020	20	0.5	19.0	194	395	100/500/1000
3.566.1.2.2.0050.0.0024	24	0.5	20.8	232	470	100/500/1000
Part Number	PairCount	ConductorCross-section (mm²)	Approx.Cable Diameter (mm)	CopperWeight (kg/km)	Approx.Weight (kg/km)	PackingLengths (m)
3.566.1.2.2.0075.0.0001	1	0.75	6.8	19	85	100/500/1000
3.566.1.2.2.0075.0.0002	2	0.75	9.1	34	110	100/500/1000
3.566.1.2.2.0075.0.0004	4	0.75	11.2	63	165	100/500/1000
3.566.1.2.2.0075.0.0008	8	0.75	14.8	120	265	100/500/1000
3.566.1.2.2.0075.0.0010	10	0.75	16.5	149	315	100/500/1000
3.566.1.2.2.0075.0.0012	12	0.75	17.0	178	340	100/500/1000
3.566.1.2.2.0075.0.0016	16	0.75	19.2	235	430	100/500/1000
3.566.1.2.2.0075.0.0020	20	0.75	21.5	293	515	100/500/1000
3.566.1.2.2.0075.0.0024	24	0.75	23.5	350	600	100/500/1000
Part Number	PairCount	ConductorCross-section (mm²)	Approx.Cable Diameter (mm)	CopperWeight (kg/km)	Approx.Weight (kg/km)	PackingLengths (m)
3.566.1.2.2.0100.0.0001	1	1	7.2	24	82	100/500/1000
3.566.1.2.2.0100.0.0002	2	1	10.4	44	130	100/500/1000
3.566.1.2.2.0100.0.0004	4	1	12.2	83	195	100/500/1000
3.566.1.2.2.0100.0.0008	8	1	16.0	160	315	100/500/1000
3.566.1.2.2.0100.0.0010	10	1	18.0	199	375	100/500/1000
3.566.1.2.2.0100.0.0012	12	1	18.8	238	430	100/500/1000
3.566.1.2.2.0100.0.0016	16	1	21.2	316	530	100/500/1000
3.566.1.2.2.0100.0.0020	20	1	23.5	393	640	100/500/1000
Part Number	PairCount	ConductorCross-section (mm²)	Approx.Cable Diameter (mm)	CopperWeight (kg/km)	Approx.Weight (kg/km)	PackingLengths (m)
3.566.1.2.2.0130.0.0001	1	1.3	7.9	30	98	100/500/1000
3.566.1.2.2.0130.0.0002	2	1.3	11.2	55	155	100/500/1000
3.566.1.2.2.0130.0.0004	4	1.3	13.0	106	235	100/500/1000
3.566.1.2.2.0130.0.0008	8	1.3	17.0	207	390	100/500/1000
3.566.1.2.2.0130.0.0010	10	1.3	19.4	257	485	100/500/1000
3.566.1.2.2.0130.0.0012	12	1.3	20.0	308	550	100/500/1000
3.566.1.2.2.0130.0.0016	16	1.3	23.0	408	640	100/500/1000
3.566.1.2.2.0130.0.0020	20	1.3	25.2	509	800	100/500/1000
Part Number	PairCount	ConductorCross-section (mm²)	Approx.Cable Diameter (mm)	CopperWeight (kg/km)	Approx.Weight (kg/km)	PackingLengths (m)
3.566.1.2.2.0150.0.0001	1	1.5	8.3	33	115	100/500/1000
3.566.1.2.2.0150.0.0002	2	1.5	11.7	62	170	100/500/1000
3.566.1.2.2.0150.0.0004	4	1.5	13.6	119	240	100/500/1000
3.566.1.2.2.0150.0.0008	8	1.5	18.3	232	415	100/500/1000
3.566.1.2.2.0150.0.0010	10	1.5	20.5	289	520	100/500/1000
3.566.1.2.2.0150.0.0012	12	1.5	21.5	346	590	100/500/1000
3.566.1.2.2.0150.0.0016	16	1.5	24.0	459	800	100/500/1000
3.566.1.2.2.0150.0.0020	20	1.5	27.0	573	1100	100/500/1000
Part Number	PairCount	ConductorCross-section (mm²)	Approx.Cable Diameter (mm)	CopperWeight (kg/km)	Approx.Weight (kg/km)	PackingLengths (m)
3.566.1.2.2.0250.0.0001	1	2.5	9.2	52	127	100/500/1000
3.566.1.2.2.0250.0.0002	2	2.5	13.2	99	207	100/500/1000
3.566.1.2.2.0250.0.0004	4	2.5	15.3	194	342	100/500/1000
3.566.1.2.2.0250.0.0008	8	2.5	19.8	382	650	100/500/1000
3.566.1.2.2.0250.0.0010	10	2.5	23	476	776	100/500/1000
3.566.1.2.2.0250.0.0012	12	2.5	25.2	571	914	100/500/1000
3.566.1.2.2.0250.0.0016	16	2.5	27.1	759	1190	100/500/1000
3.566.1.2.2.0250.0.0020	20	2.5	28.0	948	1620	100/500/1000
