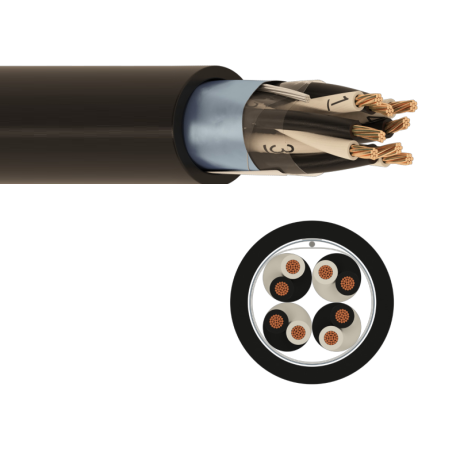

Cablu de instrumente RE-2Y(St)Y-TP
Application Cable Construction
· At instrumentation control and data processes, analog
and digital signal transmission.
· In chemical and petrochemical industry.
· Powerplants.
· Outdoor and indoor places,dry, moist and wet places.
· Gas stations, water transportation systems.
Cable Construction
- Conductor :
- Insulation :
- Stranding :
- Wrapping :
- Screen :
- Outer Jacket :
Stranded electrolytic copper conductor (Class 2)
(IEC 60228, EN 60228, DIN VDE 0295)
Polyetylene (BS EN 50290-2, VDE 0207 YI1), Black, White;
Number coded (BS 5308-2)
Pairs are stranded in layers.
Polyester tape
Tinned copper earthing wire, Al/PET tape
UV resistant Polyetylene outer jacket. RAL 9005 (Black)
Technical Characteristics
| Cross Section |
Conductor Resistance Ω/km (20 °C) |
Insulation Resistance MΩ/km (20 °C) |
Mutual Capacit. pF/m |
Inductance Resistance Ratio nH/Ω |
Current Carrying Capacity A |
Operating Voltage V DC |
Test Voltage V (DC. 1 minute) Pair-Pair |
Test Voltage V (DC. 1 minute) Pair-Screen |
| 0.50 mm² |
36 |
100 |
170 |
25 |
6 |
300/500 |
2000 |
2000 |
| 0.75 mm² |
24.5 |
100 |
170 |
25 |
13 |
300/500 |
2000 |
2000 |
| 1.00 mm² |
18.1 |
100 |
170 |
25 |
16 |
300/500 |
2000 |
2000 |
| 1.30 mm² |
13.9 |
100 |
170 |
40 |
18 |
300/500 |
2000 |
2000 |
| 1.5 mm² |
12.1 |
100 |
170 |
40 |
20 |
300/500 |
2000 |
2000 |
| 2.5 mm² |
7.41 |
100 |
170 |
60 |
25 |
300/500 |
2000 |
2000 |
Mechanical Characteristics
| Bending Radius |
Temperature Range Operating |
| 7.5xD mm |
-30°C~+70°C |
| Part Number |
Pair Count |
Conductor Cross-section (mm²) |
Approx. Cable Diameter (mm) |
Copper Weight (kg/km) |
Approx. Weight (kg/km) |
Packing Lengths (m) |
| 3.562.1.1.2.0050.0.0001 |
1 |
0.5 |
5.6 |
14 |
45 |
100/500/1000 |
| 3.562.1.1.2.0050.0.0002 |
2 |
0.5 |
8.2 |
24 |
60 |
100/500/1000 |
| 3.562.1.1.2.0050.0.0004 |
4 |
0.5 |
9.4 |
43 |
100 |
100/500/1000 |
| 3.562.1.1.2.0050.0.0008 |
8 |
0.5 |
12.3 |
81 |
186 |
100/500/1000 |
| 3.562.1.1.2.0050.0.0010 |
10 |
0.5 |
14 |
100 |
231 |
100/500/1000 |
| 3.562.1.1.2.0050.0.0012 |
12 |
0.5 |
14.3 |
118 |
263 |
100/500/1000 |
| 3.562.1.1.2.0050.0.0016 |
16 |
0.5 |
16.4 |
156 |
344 |
100/500/1000 |
| 3.562.1.1.2.0050.0.0020 |
20 |
0.5 |
18.3 |
194 |
414 |
100/500/1000 |
| 3.562.1.1.2.0050.0.0024 |
24 |
0.5 |
19.9 |
232 |
492 |
100/500/1000 |
| Part Number |
Pair Count |
Conductor Cross-section (mm²) |
Approx. Cable Diameter (mm) |
Copper Weight (kg/km) |
Approx. Weight (kg/km) |
Packing Lengths (m) |
| 3.562.1.1.2.0075.0.0001 |
1 |
0.75 |
6.0 |
19 |
50 |
100/500/1000 |
| 3.562.1.1.2.0075.0.0002 |
2 |
0.75 |
9.0 |
34 |
80 |
100/500/1000 |
| 3.562.1.1.2.0075.0.0004 |
4 |
0.75 |
10.0 |
63 |
120 |
100/500/1000 |
| 3.562.1.1.2.0075.0.0008 |
8 |
0.75 |
13.6 |
120 |
240 |
100/500/1000 |
| 3.562.1.1.2.0075.0.0010 |
10 |
0.75 |
15.3 |
149 |
290 |
100/500/1000 |
| 3.562.112.2.0075.0.0012 |
12 |
0.75 |
15.8 |
178 |
330 |
100/500/1000 |
| 3.562.1.1.2.0075.0.0016 |
16 |
0.75 |
18 |
235 |
440 |
100/500/1000 |
| 3.562.1.1.2.0075.0.0020 |
20 |
0.75 |
20.2 |
293 |
540 |
100/500/1000 |
| 3.562.1.1.2.0075.0.0024 |
24 |
0.75 |
22 |
350 |
635 |
100/500/1000 |
| Part Number |
Pair Count |
Conductor Cross-section (mm²) |
Approx. Cable Diameter (mm) |
Copper Weight (kg/km) |
Approx. Weight (kg/km) |
Packing Lengths (m) |
| 3.562.1.1.2.0100.0.0001 |
1 |
1 |
6.4 |
24 |
58 |
100/500/1000 |
| 3.562.1.1.2.0100.0.0002 |
2 |
1 |
9.2 |
44 |
100 |
100/500/1000 |
| 3.562.1.1.2.0100.0.0004 |
4 |
1 |
11 |
83 |
160 |
100/500/1000 |
| 3.562.1.1.2.0100.0.0008 |
8 |
1 |
14.7 |
160 |
295 |
100/500/1000 |
| 3.562.1.1.2.0100.0.0010 |
10 |
1 |
16.8 |
199 |
350 |
100/500/1000 |
| 3.562.1.1.2.0100.0.0012 |
12 |
1 |
17 |
238 |
420 |
100/500/1000 |
| 3.562.1.1.2.0100.0.0016 |
16 |
1 |
19.9 |
316 |
560 |
100/500/1000 |
| 3.562.1.1.2.0100.0.0020 |
20 |
1 |
22 |
393 |
680 |
100/500/1000 |
| Part Number |
Pair Count |
Conductor Cross-section (mm²) |
Approx. Cable Diameter (mm) |
Copper Weight (kg/km) |
Approx. Weight (kg/km) |
Packing Lengths (m) |
| 3.562.1.1.2.0130.0.0001 |
1 |
1.3 |
6.8 |
30 |
64 |
100/500/1000 |
| 3.562.1.1.2.0130.0.0002 |
2 |
1.3 |
10 |
55 |
115 |
100/500/1000 |
| 3.562.1.1.2.0130.0.0004 |
4 |
1.3 |
11.8 |
106 |
195 |
100/500/1000 |
| 3.562.1.1.2.0130.0.0008 |
8 |
1.3 |
15.8 |
207 |
350 |
100/500/1000 |
| 3.562.1.1.2.0130.0.0010 |
10 |
1.3 |
18 |
257 |
440 |
100/500/1000 |
| 3.562.1.1.2.0130.0.0012 |
12 |
1.3 |
18.6 |
308 |
505 |
100/500/1000 |
| 3.562.1.1.2.0130.0.0016 |
16 |
1.3 |
21.3 |
408 |
650 |
100/500/1000 |
| 3.562.1.1.2.0130.0.0020 |
20 |
1.3 |
24 |
509 |
820 |
100/500/1000 |
| Part Number |
Pair Count |
Conductor Cross-section (mm²) |
Approx. Cable Diameter (mm) |
Copper Weight (kg/km) |
Approx. Weight (kg/km) |
Packing Lengths (m) |
| 3.562.1.1.2.0150.0.0001 |
1 |
1.5 |
7.2 |
33 |
70 |
100/500/1000 |
| 3.562.1.1.2.0150.0.0002 |
2 |
1.5 |
10.5 |
62 |
135 |
100/500/1000 |
| 3.562.1.1.2.0150.0.0004 |
4 |
1.5 |
12.3 |
119 |
220 |
100/500/1000 |
| 3.562.1.1.2.0150.0.0008 |
8 |
1.5 |
17 |
232 |
400 |
100/500/1000 |
| 3.562.1.1.2.0150.0.0010 |
10 |
1.5 |
19.2 |
289 |
495 |
100/500/1000 |
| 3.562.1.1.2.0150.0.0012 |
12 |
1.5 |
20 |
346 |
575 |
100/500/1000 |
| 3.562.1.1.2.0150.0.0016 |
16 |
1.5 |
22.8 |
459 |
760 |
100/500/1000 |
| 3.562.1.1.2.0150.0.0020 |
20 |
1.5 |
25.8 |
573 |
934 |
100/500/1000 |
| Part Number |
Pair Count |
Conductor Cross-section (mm²) |
Approx. Cable Diameter (mm) |
Copper Weight (kg/km) |
Approx. Weight (kg/km) |
Packing Lengths (m) |
| 3.562.1.1.2.0250.0.0001 |
1 |
2.5 |
8.9 |
52 |
110 |
100/500/1000 |
| 3.562.1.1.2.0250.0.0002 |
2 |
2.5 |
11.9 |
99 |
190 |
100/500/1000 |
| 3.562.1.1.2.0250.0.0004 |
4 |
2.5 |
15.3 |
194 |
330 |
100/500/1000 |
| 3.562.1.1.2.0250.0.0008 |
8 |
2.5 |
19.5 |
382 |
615 |
100/500/1000 |
| 3.562.1.1.2.0250.0.0010 |
10 |
2.5 |
21.5 |
476 |
765 |
100/500/1000 |
| 3.562.1.1.2.0250.0.0012 |
12 |
2.5 |
23.6 |
571 |
901 |
100/500/1000 |
| 3.562.1.1.2.0250.0.0016 |
16 |
2.5 |
27.2 |
759 |
1170 |
100/500/1000 |
| 3.562.1.1.2.0250.0.0020 |
20 |
2.5 |
30.2 |
948 |
1435 |
100/500/1000 |
